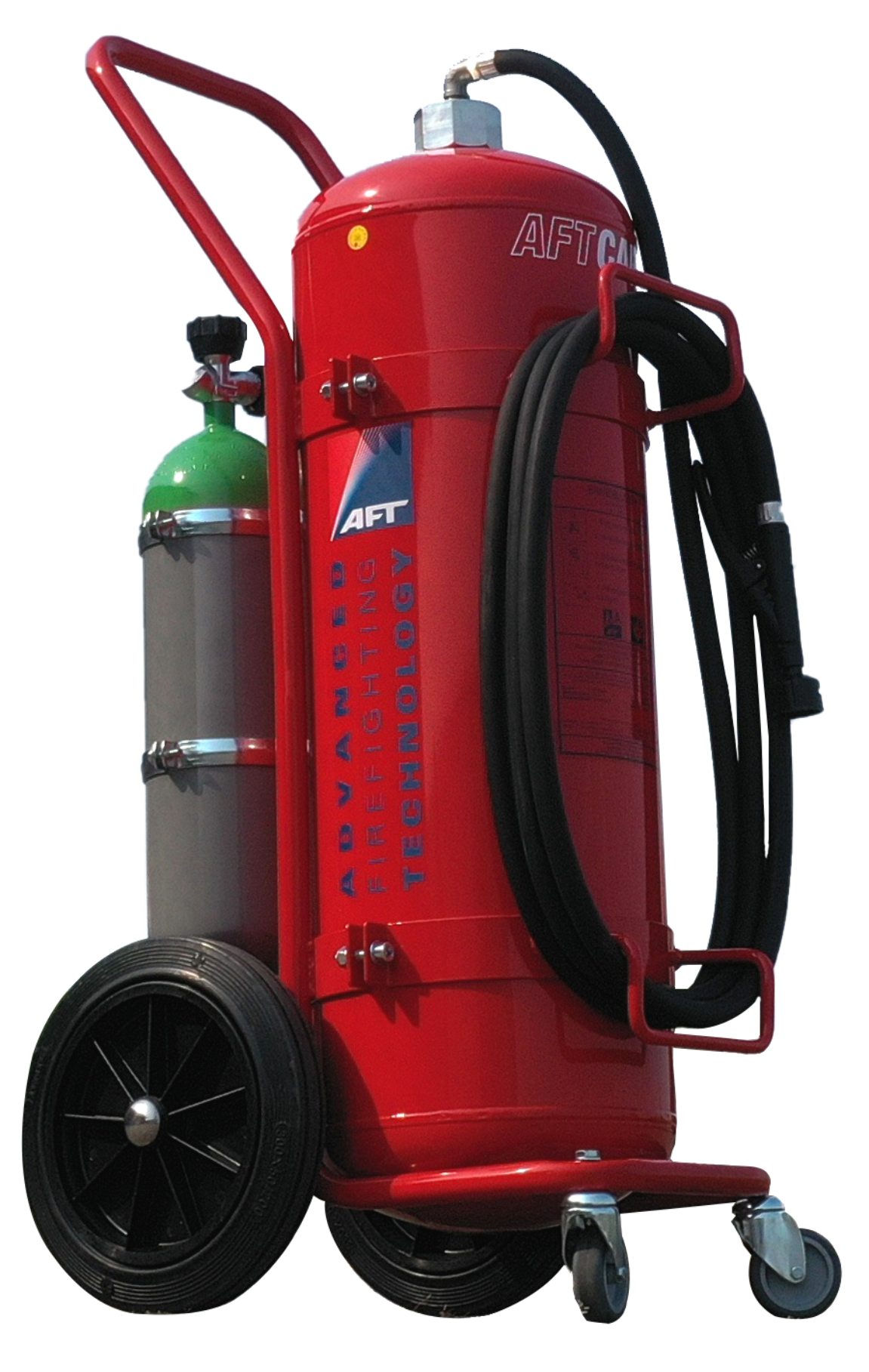

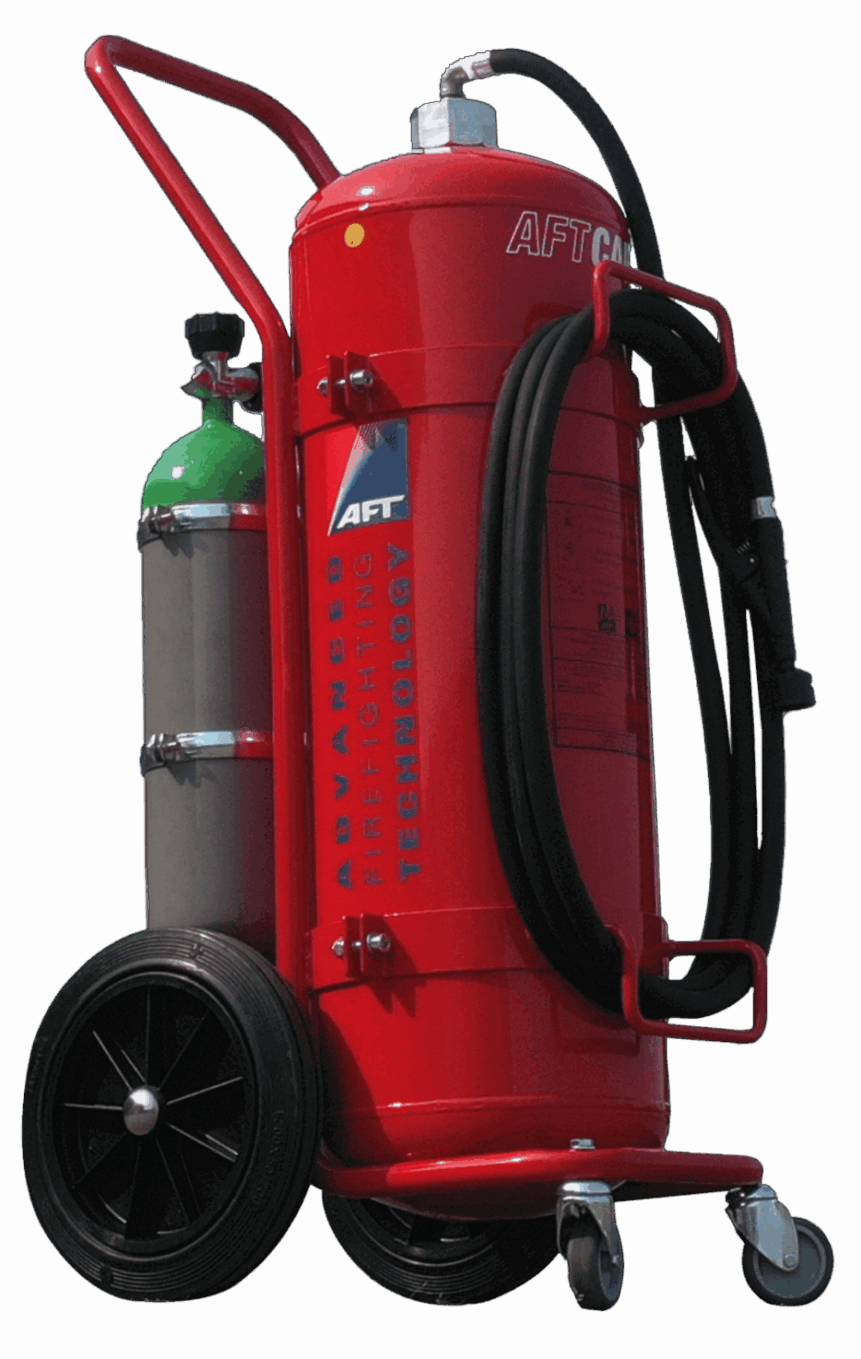

AFT C CAFS 50 Trolley 55 Litres
- Dry Compressed Air Foam
- Mobile, Easy to Transport Extinguishing System
- Easy to Operate
- Low Maintenace Costs
- Long lancing Distance
- Weight Empty: 44 kg
Description
The AFT new range of extinguishers utilizes new patented technology and is a multi-application portable fire extinguisher for all round use. Our patented mixing technology produces extremely fine water mist droplets that are highly effective in providing rapid cooling due to extensive heat absorption, suppressing the fire, and reducing its oxygen content. The new range of extinguishers can be used as a water mist system or compressed air foam system via adding the recommended foaming agent.
- Compressed Air Foam System
- Mobile, Easy to Transport Extinguishing System
- Lancing Distance/Height: 15 m / 13 m
- Variable Hose Length Options, from 5 to 30 m
- Easy to Operate
- Low Maintenace Costs
Technical Specifications
Extinguishing Agent Tank | |
Filling Capacity (EN3) | 55 Litres |
Material | Coated Steel |
Working Pressure | |
Pressure | 8.5 bar |
Propellant Gas Bottle | |
Medium | Compressed Air |
Pressure Cylinder | Filling Pressure: 300 bar |
Technical Parameters | |
Operating Time | Approx. 103 sec. |
Operating Temperature | Tmin +5°C; Tmax +60°C |
Frame | Double Powder Coated Steel Frame |
Extinguishing Gun | |
Lancing Distance | Approx. 14-16 m Jet Mode |
Ratings (Extinguishing Performance) | |
A & B Fire Class | IVB as per EN1866 |
Dimensions | |
Weight Empty (Without Air Bottle) | 44 kg |
Dimensions (LxWxH) | Approx. 800 x 410 x 1100 mm |
Certifications | |
Standards | DIN EN1866, TÜV, ISO 9001 (manufacturer) 1 |
Option | |
